Top LED temperature of the speaker

The maximum temperature of the LED on the top of the speaker is 39 degrees, the highest temperature near the LED on the side is 49 degrees, the temperature of the LED control chip is 49 degrees, the temperature of the PCB board is 46 degrees, the temperature of the second LED on the side is 59 degrees, the temperature of the LED control chip is 60 degrees, and the temperature of the power chip is 61 degrees.
Top LED temperature of the speaker

  • The maximum temperature of the LED on the top of the speaker is 39 degrees.

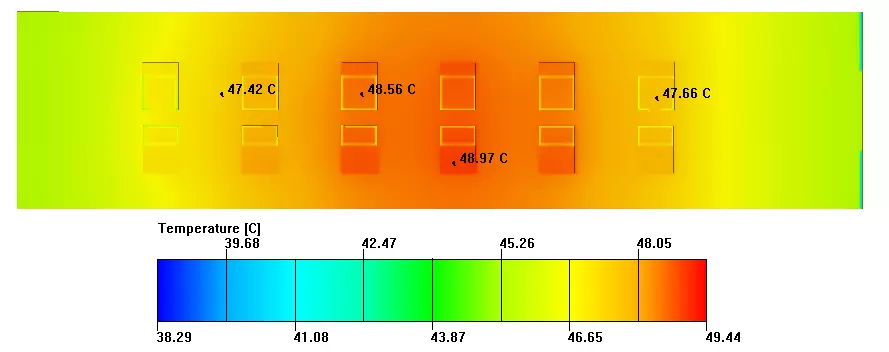

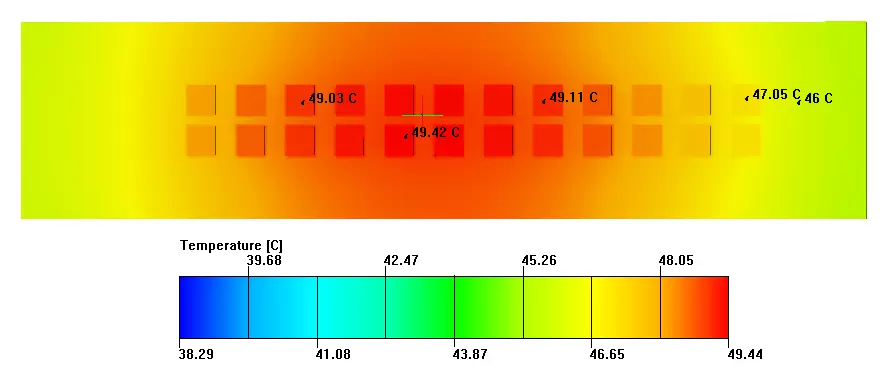

  • The highest temperature on the side near the LED is 49 degrees. The temperature of the LED control chip is 49 degrees, and that of the PCB board is 46 degrees.

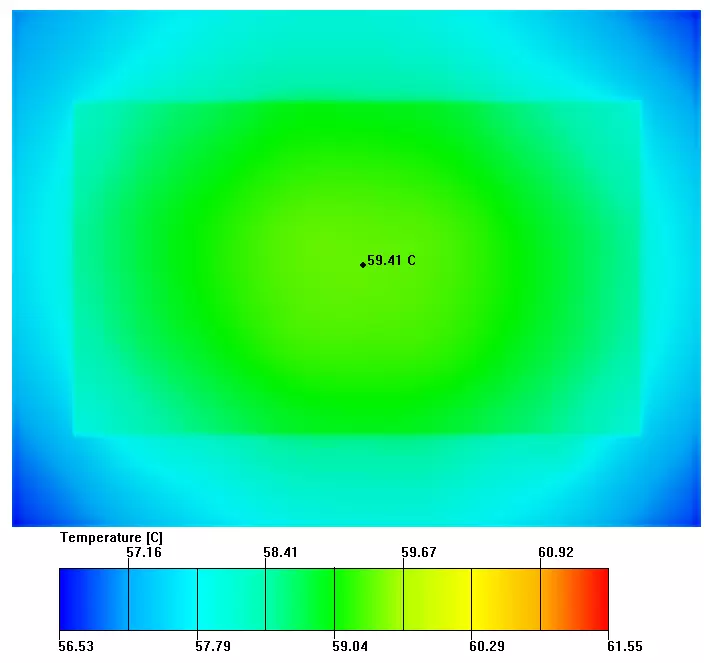

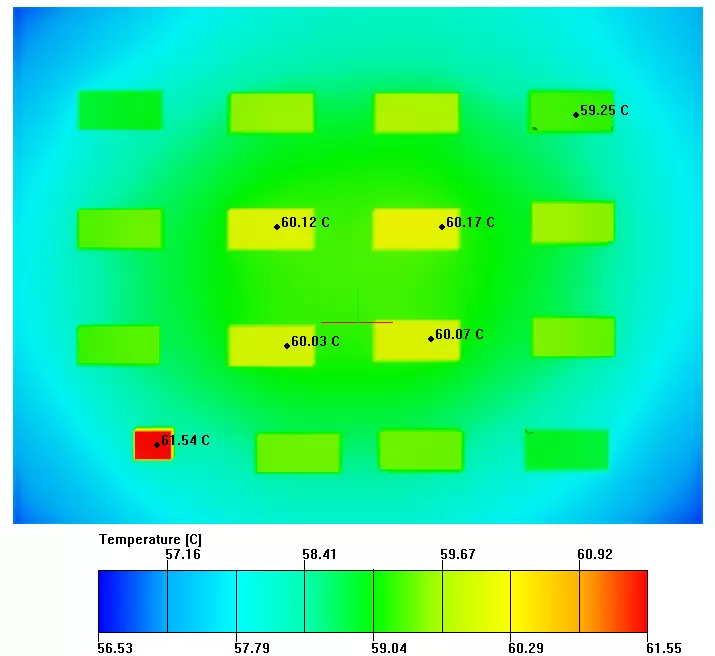

  • The temperature of the second LED on the side is 59 degrees, the temperature of the LED control chip is 60 degrees, and the temperature of the power chip is 61 degrees.
